S24 Selector Replacement for AKG C24

Category

Handmade design inspired by the original S24 selector used with the AKG C24 microphone.

  • Fully functional and compatible with the original AKG C24 microphone
  • Aluminium die-cast enclosure with hammerite finish
  • Output with 2 x XLR connectors
  • Binder connector (09-0447-00-12 – Series 691)
  • Dimensions: 153 x 83 x 50mm

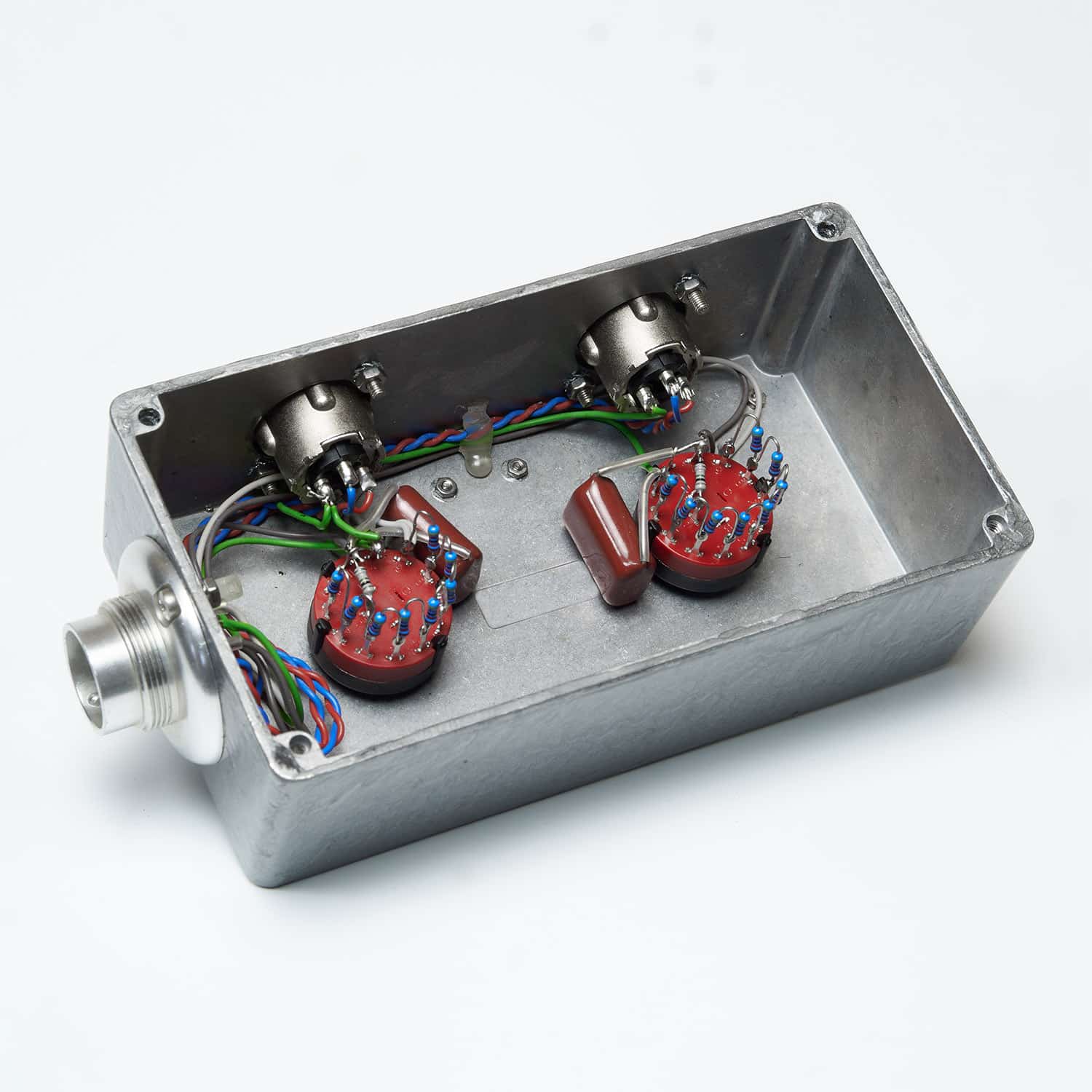

This selector is used to switch the polar patterns of both systems independently. The internal circuit is wired according to the original schematic (see the C24 manual), with the only difference being the use of two XLR connectors instead of a single 5-pin connector for output. The circuit can be modified to suit your needs. The selector uses a 12-pin male Binder connector (09-0447-00-12), which is compatible with the original Amphenol Tuchel connector (3617-006).

Related products:



390

Only 1 left in stock
